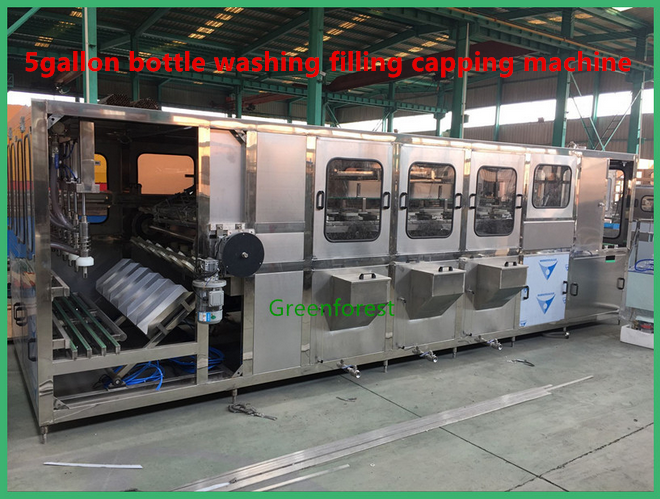

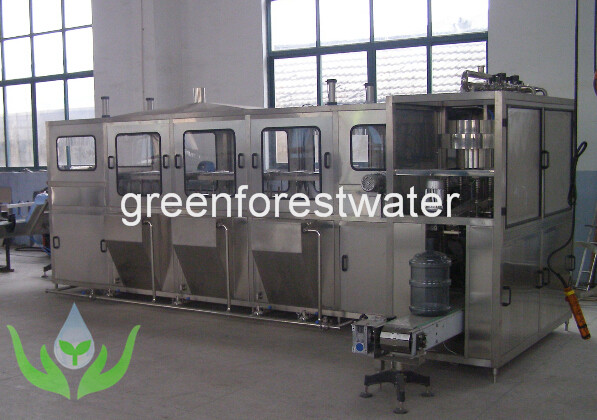

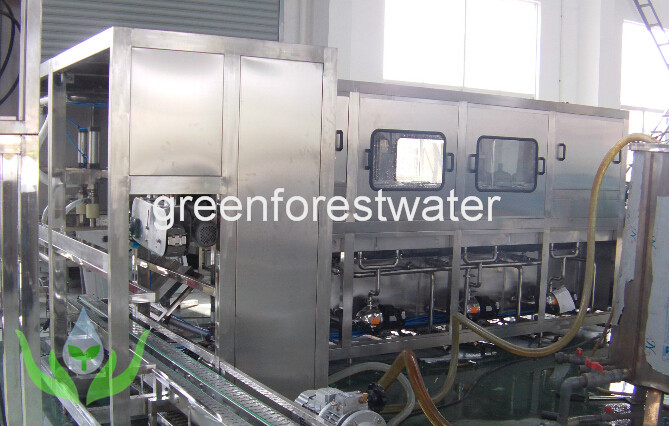

This filling machine specially is for producing 3Gallon&5Gallon  for distilled water and purified water. It integrates bottle washing, filling, and capping into one unit. Bottle washing stations can be customized according to customer's requirement. It is suitable for using in the 5 gallon bottle filling line.

Feature:
1: Whole system controlled by Korean LG PLC.
2: Precision orientation and automatically finish. Less labor and worker needed.
3: The equipment adopts high strength stainless steel 304 material.
4: Drive motor, pressure pumps, Korean PLC system most of them adopt Chinese export series stainless steel products.
5: The filling machine can be made for additional changing device for bottled water counter



Technical data:
Capacity: 600 bottles per hour
Power: 220V/60Hz, 380V/50Hz three phases or customized
Filling head:8 heads
Applicable bottle: 3Gallon&5Gallon
Applicable cap: according to customers caps
Required air compressor: 0.6-0.8 MPa
Pump used: Lingxiao Pump
Dimension (mm):5280*1850*1900
Weight (kg):3000
Package: Standard export wooden package

Working process:
6stages washing
1: Hot alkaline cleaning
2: Clean water recycle washing
3: Chlorine internal washing
4: Chlorine water washing
5: Pure water internal washing
6: Pure water internal washing
After washing, the bottle goes into filling segment , then goes into capping segment automatically.
