Self-adhesive labelling machine

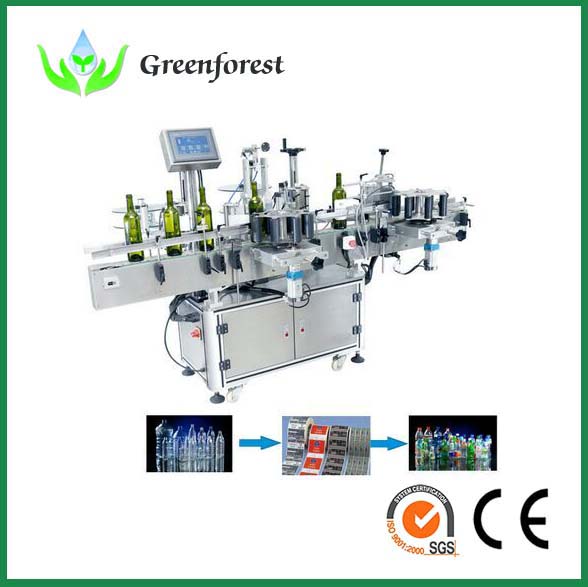

Automatic round bottle labeling machine description: The machine is applicable for pharmacy,food,light industry,daily chemical round PET bottle or glass bottle labeling.The label is self-adhesive. GF-LW2 automatic round wine labeling machine can stick one label, two labels(front and back labels),when the bottle have one label already, the machine can stick another label on right where you want. Feature: 1.Adopting Germany SIEMENS PLC control 2.Adopting easy operation large touch screen 3.Adopting Germany label sensor 4.Adopting Japan object sensor 5.All machines are made of SUS304 stainless steel and 6063 aluminum alloy 6.Labeling head can deflex ±20º to suit taper bottle 7.Can be equipped coding machine(optional) 8.Can be equipped bottle feeding table(optional) 9.Capacity:2000-15000BPH

Industrial UF filtration description: This stainless steel frame UF system with high quality and excellant design, it can remove organic,bactreium,virus,colloid,non-ion suspened solid. water ultra filter is usually be used after water pre-treatment plant(sand filter, carbon filter and sodium-ion exchanger) If the raw water is very good, there is no need the RO system, just use the UF filter instead of that.   The capacity can be from 500l/h to 30,000ltr/hr Many types and capacity for your choose. We can design according to your requirement.

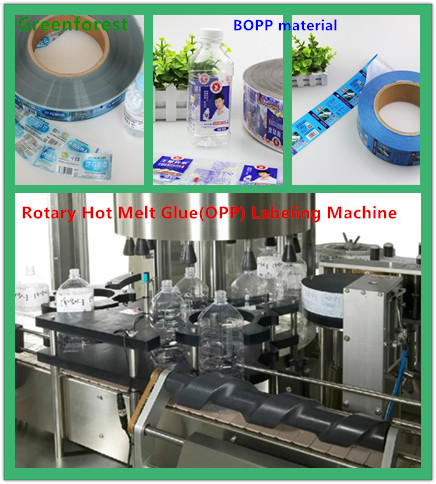

hot melt glue(OPP) labeling machine description: Technical parameters: Capacity:6000-24000b/h(for 500-600ML bottle type) Machine size:L 3000mm * W 2500mm * H 2200mm Maximum label feeding speed:150meters/min (stepless speed adjustment) Label scroll size label: roll inner dia. 152mm,outer dia. 600mm, height 200mm Labeling paste:hot melt glue applied only on two ends of the label Gluing temperature:120-160 ℃ Labeling product type:suitable for labeling plastic, metal, glass etc. container in round, oval, square or other shapes Label type:OPP film label, paper label, paper plastic composite label etc. Bottle dia:φ 40-90mm Power Source:380V 50Hz Air consumption ＜0.15m³/min Working noise＜75db Weight:about 2300-3000KG Main characteristics: 1.Applicable for OPP, pearl film, composite paper, etc. material labels labeling on drinks, mineral water, washing and food, etc. 2.Applicable for labeling on plastic, glass bottles and tins with different shapes, such as round, oval, square. 3.Full-automatic high speed labeling production process, instead of the low efficiency of manual labeling production methods, Improve the production efficiency, so as to improve the product market competitiveness. Adopts OPP film and other new environmental protection material, the maximum reduced the production costs，saving more than 30%.At the same time, the use of new environmental protection materials is a trend of packaging industry. 4.The advanced gluing method, combined with the characteristics of environmental protection type hot melt glue, achieved the perfect glue labeling effect. Only gluing at both ends of the label and maximum reduced glue consumption, cost savings. 5.Due to the use of non-shrinking label material, the printed content on the label will not deformed after labeling, ensure the beauty of packaging. 6.The machine obviates the heat shrinking tunnel and other high energy consumption process, so as to achieve the energy-saving purposes.

PET bottle labeling machine description: 1.This machine is suitable for square bottles or flat bottles with double mark or single label. 2.Can increase round bottle institution, Implement round bottles ，symmetry, the fixed point and position automatic labeling, Can increase the auxiliary mechanism to realize three face or all around surround type label. 3..Super high power AC motor and frequency inverter, helps to improve the accuracy of labeling. 4..The machine is used the famous 750W servo motor, high-precision refinement, built-in high resolution encoder. The design is to improve the accuracy. 5.The touch screen based human interface in Chinese and English with the online helping system, and the SIMEMS control system, makes it easy for operating. The press belt is geared in to the main transporting line, so it makes the two transporting lines work in synchronous absolutely. 5.The shape structure is designed specially, so the labeled product is able to be located and labeled precisely. 7.The labeling head can be adjusted at eight orientations, special for Cone bottles. It is quickly to adjust when change different size bottles. 8.Due to the label after Active roller rolling, helps to eliminate labels wrinkles, improve the quality of labeling. 9.The label is pressed by a flap after applying on bottles and is pressed by active and passive sponge rollers. It has not any air bladder when the label is stuck. Especially applicable to the crystal bottles labeled with transparent labels. 10.The machine structure adopts enhanced rigidity design, make the machine own a simple, elegant and stable appearance. 11.The machine can customize production line or special design according the customers’ requirement.

GF-BR-8 fully automatic pet bottle labeling machine for beverage description: This automatic labeling machine is suitable for the neck of round bottle+front and back, three mark label to work at the same time. Features of pet bottle labeling machine: 1.High rigidity structure: Which insure the machine reliability. 2.Using world first-class brand electrical accessories: A.Siemens controlling system B.Professional sensors imported from Germany C.High-performance transmission device imported from Japan 3.Unique labeling structure: A.the device can adjust 8d space. And it will adjust labeling angle,which is good for all kinds of difficult transparent labeling. B.Unique scraper blade,power rubber roll is press twice. It insures there is no air bladder when labeling. 4.Large power conveys system and section pressing system insure the products convey stability. And it avoids wrinkle labeling and skew labeling.

bottle labeling machine description: 1.This bottle labeling machine is suitable for square bottles or flat bottles with double mark or single label. 2.Can increase round bottle institution, Implement round bottles ,symmetry, the fixed point and position automatic labeling, Can increase the auxiliary mechanism to realize three face or all around surround type label. 3.Super high power AC motor and frequency inverter, helps to improve the accuracy of labeling. 4.The labeling machine is used the famous 750W servo motor, high-precision refinement, built-in high resolution encoder. The design is to improve the accuracy. 5.he touch screen based human interface in Chinese and English with the online helping system, and the SIMEMS control system, makes it easy for operating. The press belt is geared in to the main transporting line, so it makes the two transporting lines work in synchronous absolutely. 6.The shape structure is designed specially, so the labeled product is able to be located and labeled precisely. 7.The labeling head can be adjusted at eight orientations, special for Cone bottles. It is quickly to adjust when change different size bottles. 8.Due to the label after Active roller rolling, helps to eliminate labels wrinkles, improve the quality of labeling. 9.The label is pressed by a flap after applying on bottles and is pressed by active and passive sponge rollers. It has not any air bladder when the label is stuck. Especially applicable to the crystal bottles labeled with transparent labels. 10.The machine structure adopts enhanced rigidity design, make the machine own a simple, elegant and stable appearance. 11.The machine can customize production line or special design according the customers’ requirement.

Adhesive sticker label machine description: The adhesive sticker label machine is applicable for labeling various round bottles made of glass,plastics, metal and so on with accurate positions.Also a coder can be mounted on it to print such identifications as production date,shelf life and product batch number. The machine adopts an intelligent control system and an optimized design,thun featured by easy use  and stable performance. In particular it’s suitable for labeling and coding products with a small quantity but a great variety. Basic use： Use: implementation in the product circular face, a small cone surface, automatically attached stickers, stickers film; Role: product labeling, foil adhesion efficiency, location accuracy, quality, high stability; avoid manual labeling,foil and low efficiency, attached skew, foaming and folds, irregular attachment location a series of questions;effectively reduce product cost, improve product identification aesthetics, increase product competitiveness. Advantages： 1.Horizontal labeling approach, comprehensive implementation of the round bottle, small bottle of the week to taper, and a half weeks to the label;Adhesive Labeling machine efficiency up to 400 bottles / minute, a lot of savings in manpower and resources; 2.Labeling speed, conveyor speed, sub-bottle speed stepless speed, convenience of production personnel need to be adjusted according to actual;Automatic bottle features are used to achieve sub-bottles round, divided bottle safe and effective; switch to the production of different diameterbottles, simply replace the sub-round production of a bottle; 3.Combination of mechanical and structural adjustment of some of the clever design of the winding labels, labeling position flexibility to facilitate fine-tuning (adjusted fully fixed), so that the conversion between different products and labeling of winding simple, time-saving; 4.Standard PLC + touch screen + Stepper Motor + standard sensor electronic control system control and high safety, man-machine interface and improve the entire Chinese notes the failure prompt function, operation guidance function; easy to use, easy maintenance; 5.Equipment for complete information (including the device structure, principle, operation, maintenance, repairs, upgrades and other descriptive information) to the normal operation of equipment to provide adequate protection; 6. The production time for this adhesive labeling machine is 22days usually.

Automatic 5L cooking oil bottle labeling machine description: 1.fit for edible oil bottle products  2.three sides and round wrap labeling  3.easy to adjust
