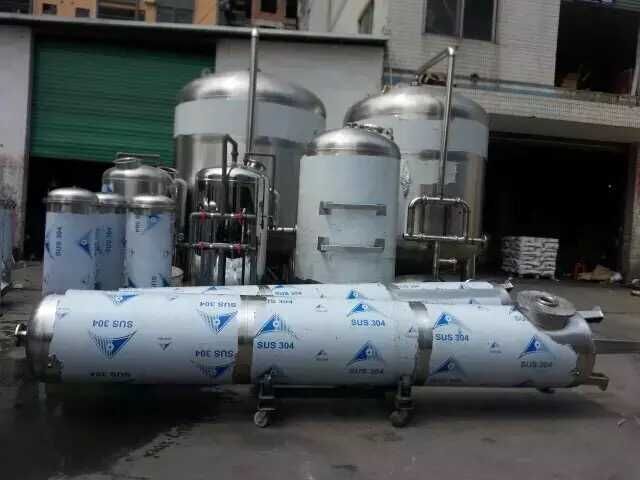

The RO purified water system is pre-treating the raw water container and desalting in the reverse osmosis system to get pure water. The pre-treatment device consists of multi-mudia filter,active carbon filter and precise micron filter.The components of the RO system has applied word famous water pump of Grundfos from Denmark and the Ro membranes made by HYDRANAUTICS AND FILMTEC of USA. It is the most ideal drinkable water prodction facility in China.
Feature:
Operationo mode: Fully automatic
RO membrane chemical washing manually
System shut down automatically when high pressure level exceed limit
Multi-stage pumps protect raw water income pressure at appropriate level
Low power and creepage protection
High quality sand and active carbon filter adopted
Main Technical specification:
Production capacity: 20T/H
Voltage: 220V/60HZ OR 380V/50HZ
Power: 22.5KW
Ro membrane: America Dow
Pipeline: SUS304
PLC: Siemens
Dimension: 5200*1250*2200MM
